Model No.︰PHP-2020B

Brand Name︰Hoting

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 pc

Inquire Now

Product Description

Application:

Widely used in Ecigarette lighter ceramic heater sheet, Porous ceramic, Ceramic capacitors, Resistors, Thick film circuits, Ceramic circuits, Filters, Glazed potentiometers, Dielectric antennas, Ceramic metallization, RFID, Automotive oil level sensors, Tension sensor , Air quality sensors, Pressure sensors( Piezoresistive, Capacitive), Integrated LED lamp holders, Thick film printing machine, Technical indicators. Piezoelectric ceramic components, LED ceramic substrates, LTCC, MLCC, Optical filter, Ceramic thick film circuit, Solar wafer, Chip components and Electronic parts printing process manufacturing.



Specification:

1. High precision printing effect through reasonable design, fine parts processing and PLC program setting.

2. Convenient one touch screen frame clamp.

3. High precision roller screw keep squeegee scraper even speed.

4. Using micro direction adjustment keep printing position accurate and instant.

5. Precision manufacturing alloy workplatform to keep printing evenness.

6. Installing adjustable squeegee pressure regulator.

7. Compact equipment and low noise design improve the influence of working area and environment.



Parameter:

Model PHP-2020B
Max printing size 200 X 200mm
Worktable size 280 X 280mm
Printing speed 500 cycle/hour
Max frame size 450 X 450mm
Printing pressure 0-50kgf
Printing table adjustable range X/Y ±10mm Z=0-50mm
Printing table tolerance In/out ±10um
Printing table flatness ±10um
Printing repeat tolerance Front and back side 0 - 9999 times
Screen fixed Cylinder clamp
Air pressure 6kg/cm2 adjustable
Weight Approx. 460kg
Power 220V X 1ph X 1KW
Dimension (W X D X H) 790 X 1190 X 1200mm

Payment Terms︰ TT/LC/DP/DA

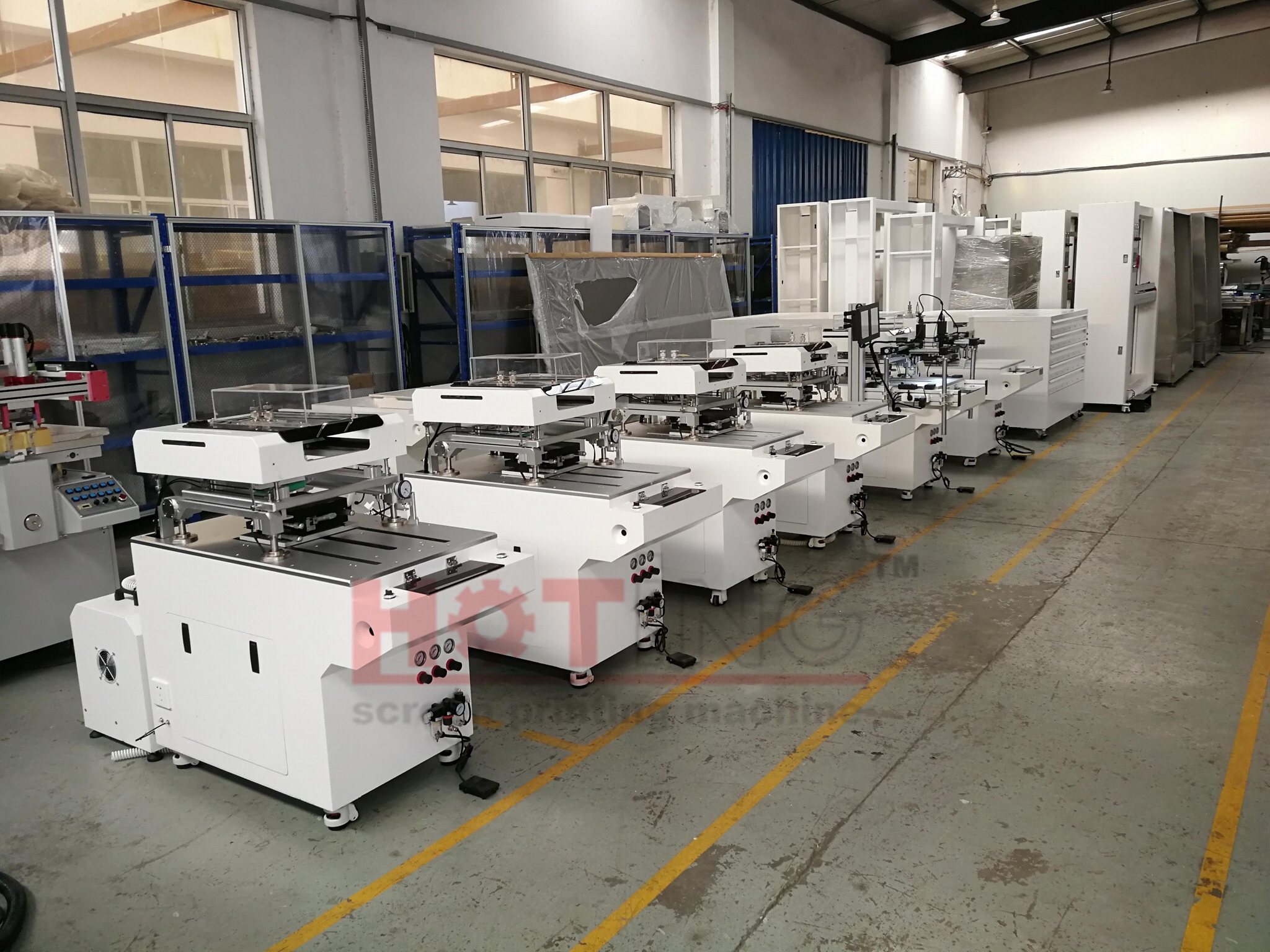

Product Image
